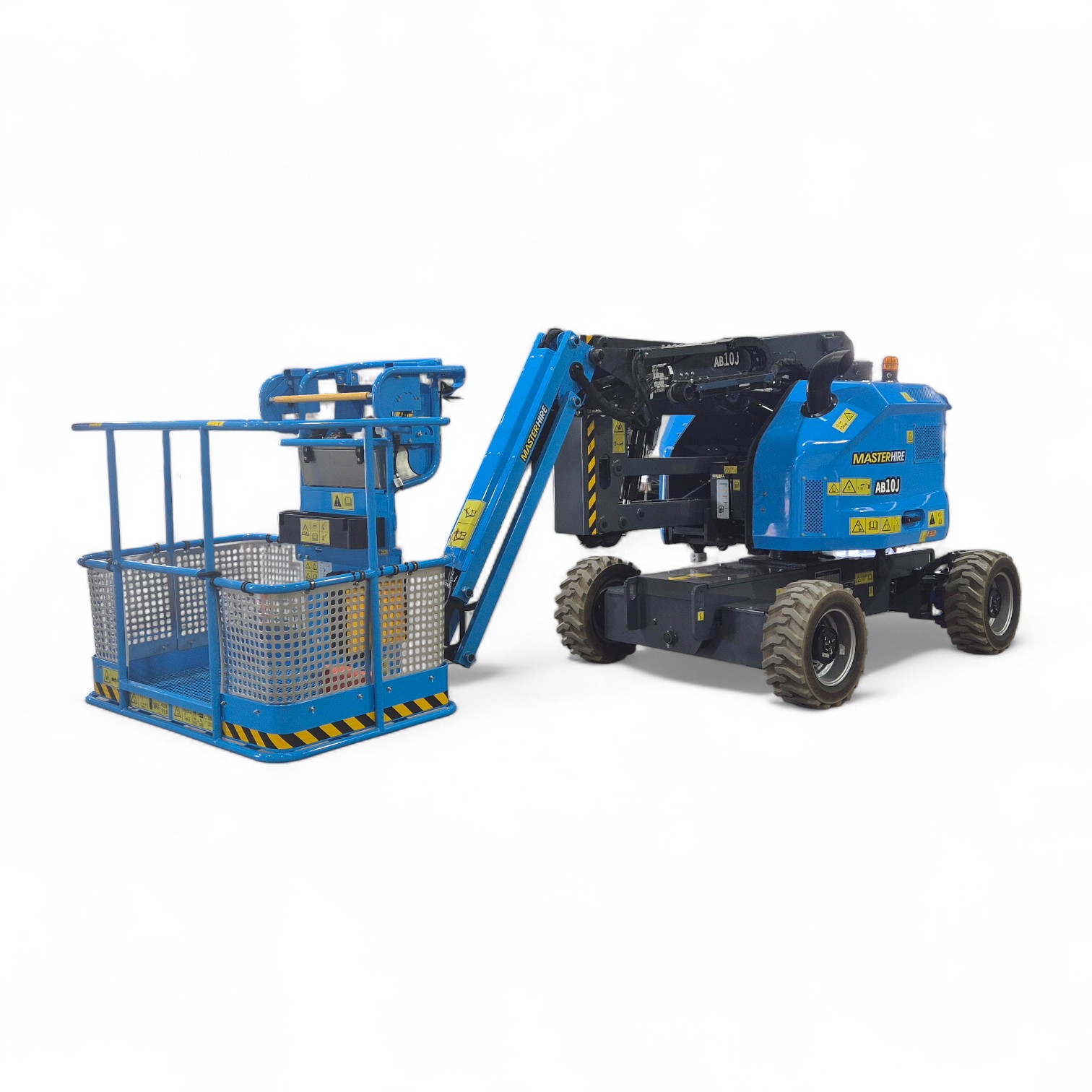

34ft Knuckle Booms


Master Hire’s knuckle or articulated boom lift utilises it’s articulated booms to manoeuvre in a ‘fold and extend’ motion to provide with a stable working platform at heights of up to 10.4m. When you need to navigate restricted spaces, work around obstacles or access areas typically out of reach, the knuckle boom is your go-to piece of equipment.

Master Hire offers 2 models. A 34 ft Knuckle Boom and a 45ft Knuckle Boom.

The 34ft knuckle boom is equipped with a reliable diesel engine offering a working height of 12.33m. Many of our units also have ‘anti-crush secondary guarding’ upon request. An optional hybrid power source is available on request.

Operational requirements

  • 34ft Knuckle Boom – No Elevating Work Platform (EWP) licence required to operate
  • 45ft Knuckle Boom – EWP licence required to operate

Ease of use

Drivable at height, Master Hire’s knuckle booms are reliable, easy to operate and perfect for restricted areas with a narrow turning radius.

  • Rugged all-terrain urethane filled lug tyres
  • Lifting Points
  • Large platform workspace with emergency decent
  • 4-wheel drive with rear oscillating axle and diff lock
  • Powerful diesel or hybrid engine
  • JLG Skyguard emergency crush prevention

Product training and guidance

Master Hire’s free customer hand over includes a thorough walkthrough and training to ensure you can operate the machine confidently and safely at all times.

Delivery and Pick Up

Master Hire offers convenient delivery and pick up options. Speak to our team for delivery rates which may vary depending on location. For more information, or to enquire about our hire rates, contact Master Hire 1300 107 107.

For your safety, convenience and WHS obligations, user manuals and hazard assessments are available for a range of equipment.

Product Documents

Operators Manuals

Hazard Assessment

These specifications are a guide only based on the supplier’s specifications.

Engine Type Diesel
Working Height 12.33m
Platform Height 10.33m
Horizontal Outreach (max) 6.06m
Up and Over Height (max) 5.17m
Overall Height 2m
Overall Width 1.93m
Overall Length 5.52m
Platform Size 1.52m x 0.76m
Lift Capacity 230kg
Operating Weight 4400kg
Skyguard Sensor
