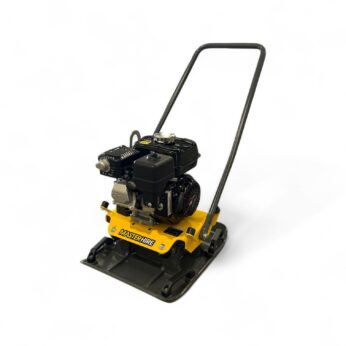

Master Hire’s 350kg reversible plate compactors are ideal for compacting decomposed granite, crusher dust, gravel, granular and cohesive soils. Able to cover a larger surface area compared to smaller vibratory plates, these units offer a high compaction rate and travel speed of up to 25m/min. With your safety in mind, these plate compactors have a deadman stop function and very low hand-arm vibrations making it possible to be used for extended periods. These heavy duty diesel plate compactors units are fitted with a central lifting point and available in 350kg, 580kg and 710kg variants or, for smaller applications, see our range of smaller vibrating plates.
Our 350kg reversible plate compactors are easy to use and Master Hire’s free customer hand over includes basic training to ensure you can operate the machine confidently and safely at all times.
Master Hire offers convenient delivery and pick up options. Speak to our team for delivery rates which may vary depending on location. For more information, or to enquire about our hire rates, contact Master Hire 1300 107 107.
For your safety, convenience and WHS obligations, user manuals and hazard assessments are available for a range of equipment.
This item can be transported on the back of a crane truck.
These specifications are a guide only based on the supplier’s specifications.
| Wacker Neuson DPU 4045YE | |
|---|---|
| Engine Type | Diesel |
| Machine Weight | 368kg |
| Overall Height | 1514mm |
| Overall Width | 900mm (inc. extension plates) |
| Overall Length | 1048mm |
| Base Plate Dimensions | 604mm x 900mm (inc. extension plates) |
| Centrifugal Force | 40kN |
| Frequency | 69Hz |
| Travel Speed | 24 m/min (1.44km/hr) |
| Max. Gradability | 25 deg |
