Light Towers – LED Cube

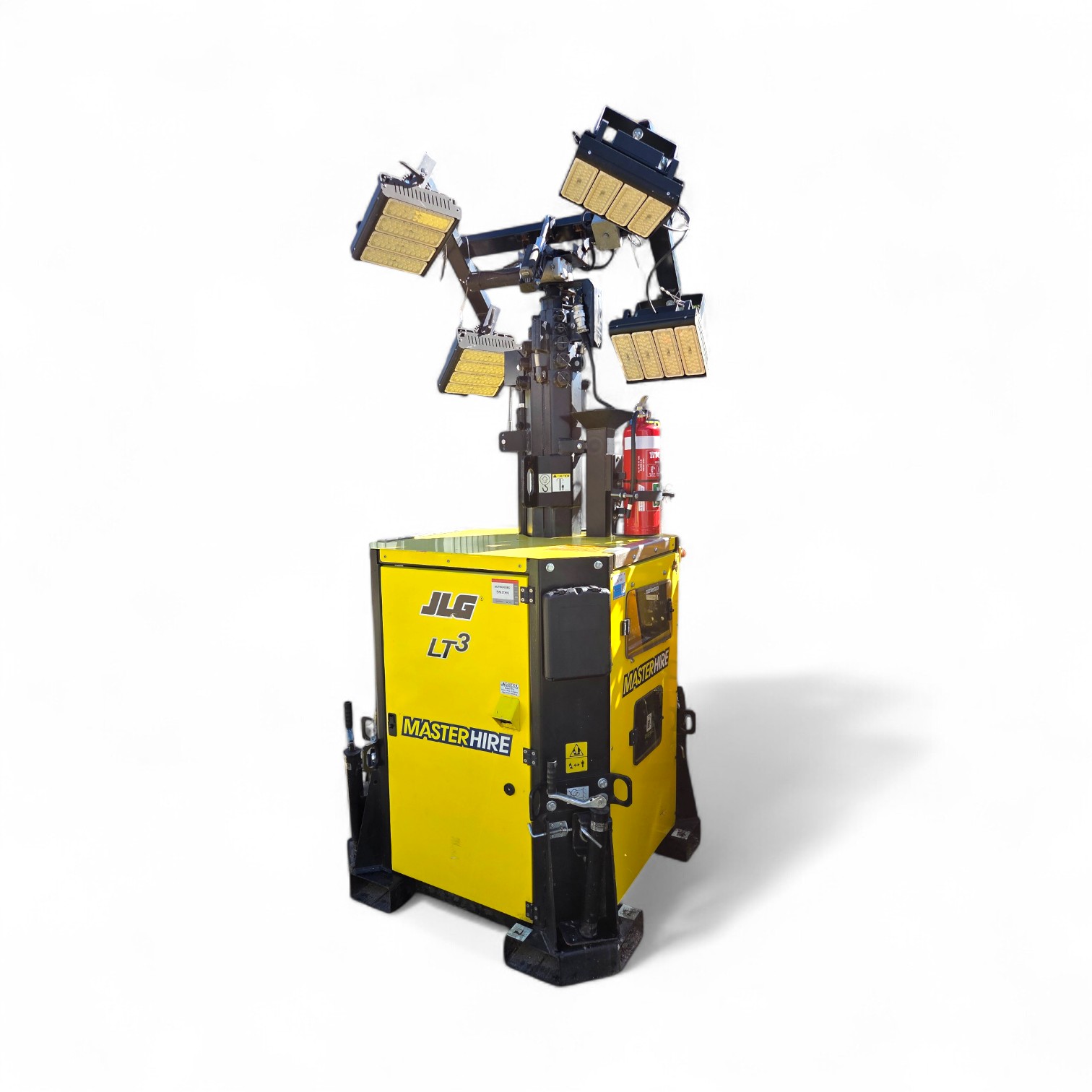

Master Hire’s cube light towers are the perfect unit for roadwork lighting applications, large or small construction sites, concerts and other large scale events. These LED lighting towers have a small footprint making them ideal for sites where access is limited. They are quick and easy to set up on site and are extremely quiet when in use (<60dB). The JLG LT3 light tower use a hydraulic powered telescopic boom mast to lift 4 x 300w bright directional LED lights up to 8.3m high. The light heads have a 45° light angle tilt and 360° rotation. These units can be easily configured to turn on/off automatically or each light can be turned on or off manually as required. When compared to traditional diesel light towers with halogen bulbs, these LED light towers are significantly quieter and are much more fuel efficient using only 0.7L per hour meaning a run time of up to 245 hours. Complete with bunding for all fluids at 110% capacity, extendable outriggers, fire extinguisher, forklift tine pockets and crane lifting points for transporting on and off a truck. These units have a fuel tank size of 172 litres and weigh only 992kg.


  • Transport up to 20 units per truck
  • One-person setup with outriggers and one-hand manual rotation
  • Adjustable pan and tilt lights on mast that can be lifted, telescoped and tilted
  • Large fuel tank for multi-shift operation
  • Bunded frame


  • Construction sites
  • Events and functions
  • Mining and industrial sites
  • Roadworks and traffic control
  • Night works

Product training and guidance

Master Hire’s free customer hand over includes a thorough walk around and training to ensure you can operate the unit confidently and safely at all times.

Delivery and pick up services

Master Hire offers convenient delivery and pick up options. Speak to our team for delivery rates which vary depending on location. For more information, prices or to place a booking call us on 1300 107 107.

For your safety, convenience and WHS obligations, user manuals and hazard assessments are available for a range of equipment.

Tilt Tray Truck Icon

This item is required to be transported on the back of tilt tray truck.

Product Documents

These specifications are a guide only based on the supplier’s specifications.

Power Source Diesel
Weight 995kg
Fuel Tank Capacity 172L
Fuel Consumption 0.7L/hr
Operating Length 1700mm
Operating Width 1700mm
Operating Height (max) 8300mm
Stowed Length 1180mm
Stowed Width 1180mm
Stowed Height 2420mm
Light Type & Output 4 x 300watt LED Lights
Mast Type Vertical Hydraulic
Noise Level < 60 dB(A) (@ 7m radius)
